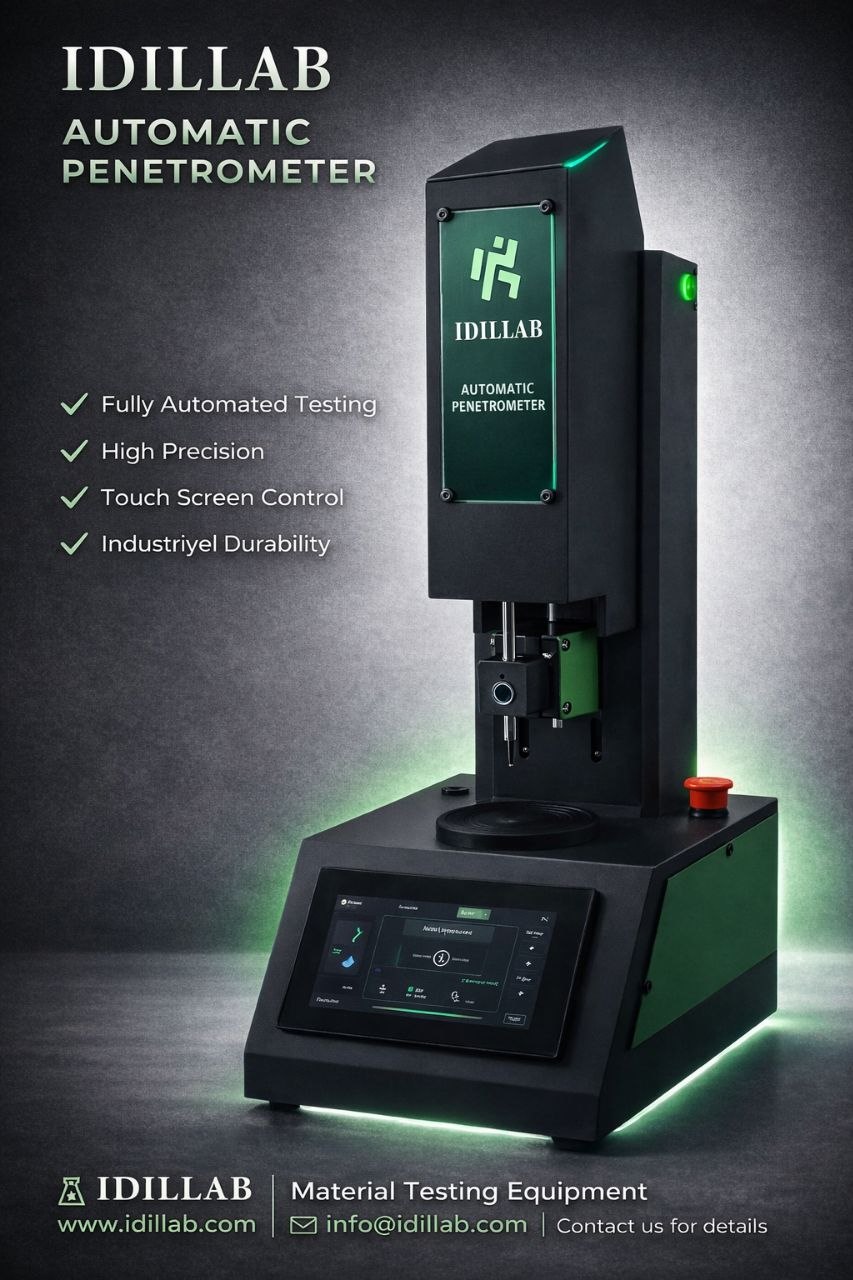

AUTOMATIC PENETROMETER

Product code :

Price:

Product features:

It determines the consistency of bitumen samples under constant load, time and temperature. It is defined as the vertical penetration of a needle within tenths of a millimeter. The base plate, light alloy leveling screws, coated vertical rod, micrometrically adjustable, are manufactured as a robust device. The slide is made of solid steel, and the free-fall time setting can be selected between 0 and 999 seconds. The optical sensor measures with an accuracy of 0.01 mm. Penetrometer, stop, release button, automatic rising system are available, 3 tests are automatically performed and averaged, 50,100 g weights, needle and sample containers diameter. 55x35mm, 70x45mm. It is complete with .
Size: 220x170x410 mm.
Weight: 11 Kg
