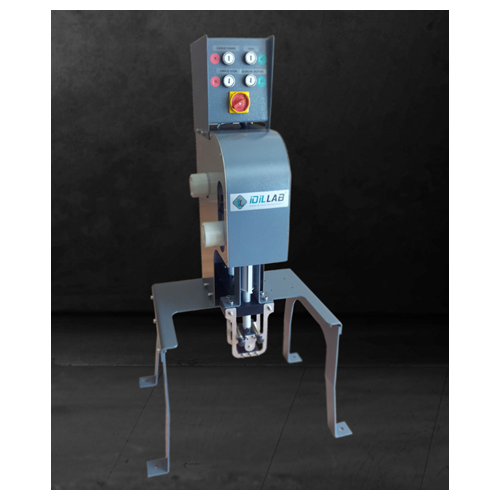

COLD BENDING TESTER

Product code: I/Y-002

Price:

Product features:

STADART:TS-EN 1109
This device is designed to test the bending ability of bituminous membranes in cold conditions.
The device consists of two fixed devices with a diameter of (20±0.1) mm.

cylinder and (30±0.1) mm diameter, cylinder or cylinder that can move upwards between these two cylinders

It consists of a semi-cylindrical bending mandrel. The distance a between the rollers can be adjusted.

distance between rollers and bending mandrel can be adjusted according to the thickness of the sheet

The entire device; A thermostat that can control the temperature between +20° and –40°C with an accuracy of 0.5 °C.

There is a bathroom. The coolant used can be one of the following mixtures:

Monopropylene glycol solution2/water (volume ratio=1/1) for temperatures down to -25°C

Ethanol/water mixture (volume ratio = 1/1) for temperatures below -20°C
